Fastener and Screw / Bolt Design, Formula and Calculations

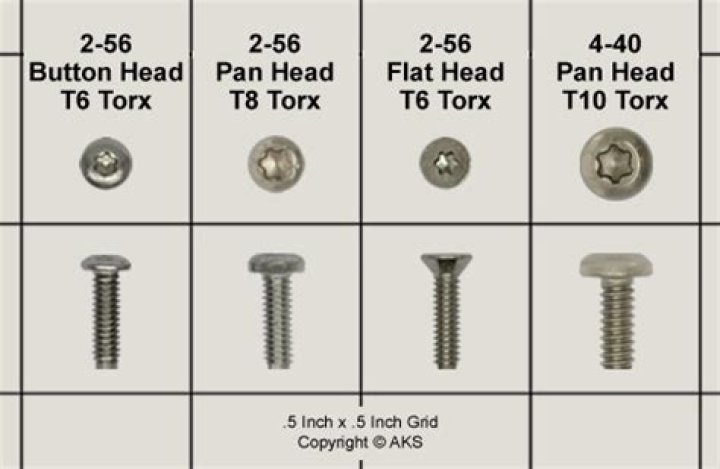

| Screw Size | Class Thread | Major Diameter |
|---|---|---|
| 1-64 | 3A | 0.0730 |
| 1-72 | 2A | 0.0724 |
| 1-72 | 3A | 0.0730 |
| 2-56 | 2A | 0.0854 |
.
Likewise, people ask, what size is a #2 screw?
US Machine Screw Diameters
| Size | Thread Diameter | |
|---|---|---|
| Decimal | Nearest Fractional | |
| #1 | 0.07" | 5/64" |
| #2 | 0.08" | 3/32" |
| #3 | 0.09" | 7/64" |
Beside above, what are machine screw sizes? Typically, machine bolt sizes range from 1/4" to 1 1/4" for square heads and 3/8" to 1 3/4" in diameter for hex heads, and lengths span from about 3/4" to 18" for square and 6 1/2" to 24" for hex heads. Measure length from under the head to the threaded end of the bolt.
Also know, is a #8 or #10 screw bigger?
Machine screws are often found in sizes of: 0, 1, 2, 3, 4, 5, 6, 8, 10, 12, 14—the larger the number, the larger the screw.
What is the minor diameter of a screw?
The major diameter of a thread is the diameter of the imaginary co-axial cylinder that just touches the crest of an external thread or the root of an internal thread. The minor diameter is the diameter of an imaginary cylinder that just touches the roots of an external thread and (or) the crests of an internal thread.
Related Question AnswersWhat is a #10 screw?
The term 10-32 comes from Unified and American Screw Threads for Bolts, Nuts, and Machine Screws standards published by ANSI B1. 1-1974. The number “10” is simply a size designator with no numerical meaning. The number “32” refers to 32 threads per inch.How big is a #10 screw?
1. The number “10” is used as a size designator and has no numerical meaning. “32” refers to the 32-thread pitch in threads per inch. You can identify a 10-32 screw by measuring the diameter with a ruler at exactly 3/16” (0.190”).Is a #10 or #12 screw bigger?
You can identify a 10-32 screw by measuring the diameter at exactly 3/16″ (4.76 mm). 12-24 rack screws are more common than 10-32 in pre-threaded racks. They are slightly larger and courser than 10-32 hardware. The number “12” is a size designator with no numerical meaning.What size screw is this?
This number will help you determine whether a screw will thread into a certain bolt properly. Screw size is measured in diameter. For example a 1/4-20 screw has 20 threads per inch and a diameter of 1/4 inch. All you need is a steel rule to determine the size and thread count of any screw.How do you measure the size of a screw?
Length is measured from the point at which the head sits flat with the surface, to the tip of the threads. Hex, pan, truss, button, socket cap, and round head screws are measured from right under the head to the end of the threads. Flat head screws are measured from the top of the head to the tip of the threads.How many MM is a #8 screw?
Diameter/Decimal/Metric Chart for Small Diameter Fasteners| Gauge or Diameter | Decimal (in) | mm |
|---|---|---|
| No.4 | 0.112 | 2.845 |
| No.5 | 0.125 | 3.175 |
| No.6 | 0.138 | 3.505 |
| No.8 | 0.164 | 4.166 |
What size drill bit to pre drill for a #10 screw?
Drill bit sizes for pre-drilling (most commonly used sizes in bold)| Screw Size | Pilot hole size for hardwoods* | Pilot hole size for softwood** |
|---|---|---|
| #9 | 1/8 | 3/32 |
| #10 | 1/8 | 7/64 |
| #11 | 5/32 | 9/64 |
| #12 | 9/64 | 1/8 |
How big is a #8 screw?
A #8 screw size is . 164 fraction of an inch. The diameters listed in the chart below are in fractions of an inch, so the #12 is just shy of 1/4 inch.What size is a #8 wood screw?
Wood Screw Diameters| Size | Major Thread Diameter* | |
|---|---|---|
| Decimal | Nearest Fractional Measurement | |
| #8 | .164" | 5/32" |
| #9 | .177" | 11/64" |
| #10 | .190" | 3/16" |
What size is a #6 screw?
Screws have three basic measurements: gauge, threads per inch, and shaft length in inches. So, you may also see a measurement like 6-32 x 1 1/2". This means it's a #6 diameter, with 32 threads per inch (almost double the normal thread count as a standard wood screw) and an inch and a half long.How do you determine the size of a wood screw?
So the length of a flat head wood screw is measured from the tip to the top of the head, but the length of a round head screw is measured from the tip to the bottom of the head. In the common wood screw the thread extends 2/3rds of the length of the screw.What is a 10 24 screw?
When referring to screws, 10-24 is one description of the type of screw you are dealing with. More formally, 10-24 tells us the size and also the pitch diameter of the screw. Taken together, these numbers give us the definition of the screw.Is a #14 screw the same as 1 4?
#14 is close to, but not exactly the same as, 1/4-inch.) The major diameter in Unified threads = 0.060″ + 0.013″ x (numbered diameter). So #2 has a major diameter of 0.086″.What are self drilling screws?
A Self-Drilling Screw is a Self-Tapping Screw with the added feature of a drill point. The drill point looks a lot like the point of a drill. It will drill a hole and form the mating threads in one operation. If a screw will drill its own hole it is a Self-Drilling Screw.What is the distance between threads on a screw called?
The distance measured parallel to the thread axis, between corresponding points on adjacent threads, is the thread pitch. Unified screw threads are designated in threads per inch. Metric thread pitch is designated as the distance between threads (pitch) in millimeters.What size is a #14 screw?
There actually are simple In general, the shank size (diameter) of a #14 screw is ¼ inch, but that does not tell you very much. The consumer demand for so many different types of screws makes a rather simple subject rather complex.How is thread pitch calculated?
- Major Diameter: Given On Print (if it is a machine screw #0-14 SEE NOTE 1A).
- Pitch: 1/number of threads per inch.
- Flat: pitch/8.
- Compound Movement: .75(pitch).
- Single Thread Height: .75(pitch) (cosine 30 degree's).
- Pitch Diameter: major diameter - single thread height.
